109.205.00.1

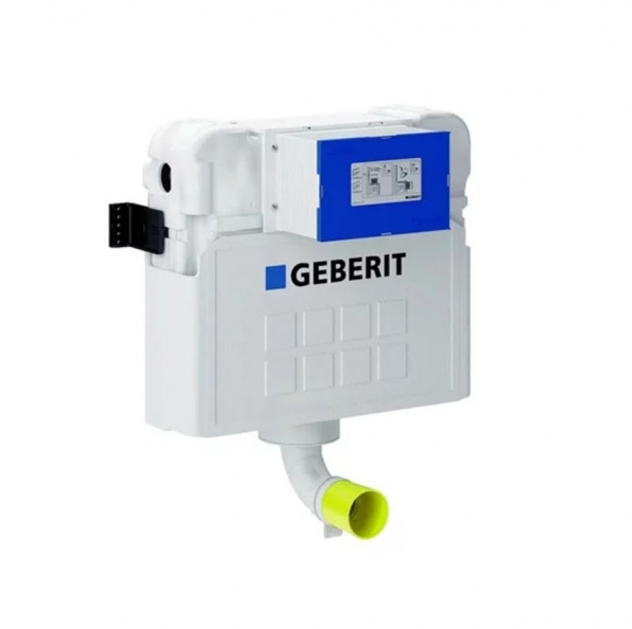

ID: 3313Geberit 109.205.00.1 Kappa Dual Flush Concealed Cistern 820mm White
- left side inlet
- adjustable depth
- white finish
- fully insulated
Other Geberit You May Like Instead...
Geberit 109.205.00.1 Kappa Dual Flush Concealed Cistern 820mm White
Geberit Kappa Concealed Dual Flush Cistern - White
The Kappa Concealed Dual Flush Cistern comes from the exciting Kappa range from Geberit.
With smart features this white finished, concealed cistern is a splendid addition in any bathrooms.
Comes with 25 years guarantee for complete peace of mind.
Features:
- Best suitable for concealed installation
- Compatible with back to wall floor standing WC
- Features front actuation
- Adjustable depth : 180 to 245mm
- Required Installation height : 820 mm
- Comes fully insulated against condensation
- Inlet at left side for water supply connection
- Connection hose to angle stop valve can be screwed without tools
- Welded Flush bend
- Fast adjustment of the actuator rods for flush plate
- Protection housing for service opening, can be cut to length
- For detailed technical dimensions refer technical image
Technical Details :
- Range of Flow pressure : 0.1 to 10 bar
- Maximum Operating temperature for water : 25 °C
- Flush volume factory setting : 5.8 and 3 liter
- Flush volume small range : 2.6 to 4 liter
- Supplied Complete With :
- Water supply connection of R 1/2 inch, compatible with MeplaFix
- Integrated angle stop valve and hand wheel
- Protection housing for service opening
- Protection plug for flush bend
- 2 x Pre-mounted fastening brackets
- Fastening material.
Product Specification
Length_(mm) | 120 |
Width_(mm) | 416 |
Height_(mm) | 365 |
Brand | Geberit |
Colour_ | White |
Material_ | Plastic |
Style_ | Modern |
Shape_ | Square |
Product Guarantee | 25 Years |
Cistern Flush | Dual/Single Flush |
