Square Fixed Head & Body Jets Thermostatic Diverter Shower System

A stylish concealed diverter shower valve set with twin handle valves with round levers.

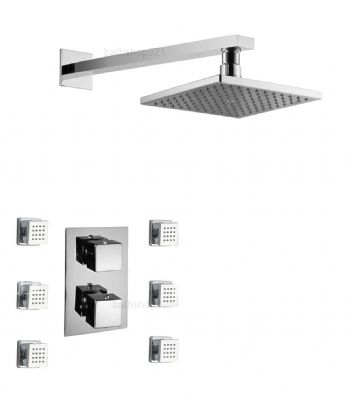

This system comes complete with 6 body jets. The fixed head is 220mm in diameter and comes with the brass wall arm.

The thermostatic valve is a diverter valve which control the temperature and flow rate for both the shower head and body jets.

On the Diverter Shower Valve, The lower handle sets the temperature and then simply turn the top handle to the left for the water flow for the fixed head to begin or turn the handle right for the body jets.

The shower head pivots allowing you to direct your water flow.

Key Features Of This Set Include

Chrome plated, brass diverter mixer valve.

High quality laser printed indicators

All components use British standard fittings

Manufactured to TMV2 standard, with thermostatic anti-scalding device. The valve will automatically shut down should the cold water fail preventing scalding

Constant temperature via the thermostatic control

Anti-scalding device set at 38 degrees, perfect to protect children and the elderly. This setting can be over-riden with the button on the temperature knob

Operating Range 20 to 50 degrees Celsius

Latest ceramic disc technology

Minimum depth inside the wall for the mixer is 60mm

Minimum 0.2 bar water pressure required

10 year warranty for your peace of mind

Additional Features

The valve has 2 controls. The bottom handle controls the temperature and the top handle the flow rate.

Why is this important?

Thermostatic showers are so much better than manual showers.

There is nothing worse than having your shower interrupted by someone running the kitchen tap or flushing the loo leaving you having to endure a short, sharp, shock of freezing or scalding water.

By choosing this thermostatic mixer shower this will never be a problem again.

The next time someone draws on the water supply, because this shower is thermostatic the temperature will remain constant.

You can see from the additional imagery above why this shower is a terrific valve. The cartridge is terrific quality and in the very unlikely event of a problem it can be easily replaced without the need to entirely remove the valve, tiling etc.

Our Valves Feature Large European cartridges which offer an increased flow rate for optimum performance. The cartridges are held in place by a screw thread as well making future maintenance easier.

Smaller cartridges offer a poor flow rate and are usually held in place by a grub screw making them difficult to remove if future maintenance is required.

Additionally the front plate is adjustable for uneven walls. This is a key feature because it means you have 25mm adjustment for uneven walls if your wall is not straight or if your tile grout is thick. The valve is designed so that no washers are visible.

Will this shower work on your water system?

This shower has a recommended minimum operating pressure of 0.2 bar. Use the graphic below to identify your water system to see if this shower is compatible for the water system in your home.

A gravity water system consists of a cold water tank which is usually located in the roof space, and a hot water cylinder which is frequently situated in the airing cupboard. A pump is sometimes in the circuit to increase water pressure. If you have a gravity system then this shower will work on your water system but you may want to consider using a pump to increase the showers performance.

Mains fed systems consist of a high pressure cylinder of water heated by a boiler or immersion heater and usually provides high volumes of water. If you have a mains fed systems then this shower is perfect for you

Combination Boilers heat your water as you use it and usually consist of a boiler attached to the wall, often in the kitchen.  If you have a combination boiler then then shower is perfect for you.
